Quick Connect Fluid Connectors

Actual size of fittings vary from the images shown

• All 2000 series fittings are available in straight, 45 ° and 90°
• All sockets and plugs we stock are stealth black finish
• All fittings are also available non-valved to allow for a 100% flow through application
• All series come standard with Fluorocarbon (FKM) seals. Buna Nitrile (NBR) seals and Ethylene Propylene (EPDM) Seals are also available in all series. All sockets and plugs are also available in stainless steel as a special order item. Caps, plugs, and C-clips are also available
  • FKM Seals are compatible with oil, water, fuel, transmission fluid, E85 (Ethanol Fuel Blend) and PAO (Polyalphaolefin)
  • NBR Seals are compatible with Alcohol (fuel)
  • EPDM Seals are compatible with Nitromethane, brake fluid, methanol (methyl alcohol) and ethanol (ethyl alcohol)
• All sockets and plugs within the same series are interchangeable
• Flow Information
  • Inlet pressure and flow through a 3 foot long -6AN hose with valved Jiffy-tite Quick Connect Fittings:


    Jiffy-tite Series 2000 Flow Information

    Pressure in psi	Jiffy-tite Valved Flow Gallons Per Minute	Jiffy-tite Valved Flow Gallons Per Hour
    5	1.75	10500
    10	2.32	139.20
    20	3.16	189.60
    30	4.08	244.80
    40	4.23	253.80
    50	4.67	280.20

We stock all the fitting listed below. We can special order any of the quality Jiffy-tite fittings. Click here to view the entire Jiffy-tite catalog

Part Number	Description	Racer Price
8-21306J	Jiffy-tite 2000 Socket Straight -6 Female FKM Seals	$36.86
8-21306JD	Jiffy-tite 2000 Socket 45 -6 Female FKM Seals	$42.67
8-21306JE	Jiffy-tite 2000 Socket 90 -6 Female FKM Seals	$42.67
8-21406J	Jiffy-tite 2000 Socket Straight -6 Male FKM Seals	$32.04
8-21406JD	Jiffy-tite 2000 Socket 45 -6 Male FKM Seals	$37.86
8-21406JE	Jiffy-tite 2000 Socket 90 -6 Male FKM Seals	$37.86
8-21506J	Jiffy-tite 2000 Socket Straight Hose Barb FKM Seals	$33.53
8-21506JD	Jiffy-tite 2000 Socket 45 Hose Barb FKM Seals	$39.35
8-21506JE	Jiffy-tite 2000 Socket 90 Hose Barb FKM Seals	$39.35
8-21506PJ	Jiffy-tite 2000 Socket Straight Push Lock FKM Seals	$25.14
8-21506PJD	Jiffy-tite 2000 Socket 45 Push Lock FKM Seals	$29.51
8-21506PJE	Jiffy-tite 2000 Socket 90 Push Lock FKM Seals	$29.51
8-21606J	Jiffy-tite 2000 Socket Straight -6 Hose End FKM Seals	$39.37
8-21606JD	Jiffy-tite 2000 Socket 45 -6 Hose End FKM Seals	$45.18
8-21606JE	Jiffy-tite 2000 Socket 90 -6 Hose End FKM Seals	$45.18
8-21702J	Jiffy-tite 2000 Socket Straight 1/8 Npt Female End FKM Seals	$34.78
8-21702JD	Jiffy-tite 2000 Socket 45 1/8 Npt Female End FKM Seals	$40.59
8-21702JE	Jiffy-tite 2000 Socket 90 1/8 Npt Female End FKM Seals	$40.59
8-21704J	Jiffy Tite 2000 Socket Straight 1/4 Npt Female End Fkm Seals	$36.51
8-21704JD	Jiffy-tite 2000 Socket 45 1/4 Npt Female End FKM Seals	$42.33
8-21704JE	Jiffy-tite 2000 Socket 90 1/4 Npt Female End FKM Seals	$42.33
8-21802J	Jiffy-tite 2000 Socket Straight 1/8 Npt Male End FKM Seals	$33.24
8-21802JD	Jiffy-tite 2000 Socket 45 1/8 Npt Male End FKM Seals	$39.06
8-21802JE	Jiffy-tite 2000 Socket 90 1/8 Npt Male End FKM Seals	$39.06
8-21804J	Jiffy-tite 2000 Socket Straight 1/4 Npt Male End FKM Seals	$35.00
8-21804JD	Jiffy-tite 2000 Socket 45 1/4 Npt Male End FKM Seals	$40.82
8-21804JE	Jiffy-tite 2000 Socket 90 1/4 Npt Male End FKM Seals	$40.82
8-22306	Jiffy-tite 2000 Plug Straight -6 Female FKM Seals	$23.51
8-22306D	Jiffy-tite 2000 Plug 45 -6 Female FKM Seals	$29.33
8-22306E	Jiffy-tite 2000 Plug 90 -6 Female FKM Seals	$29.33
8-22406	Jiffy-tite 2000 Plug Straight -6 Male FFM Seals	$20.35
8-22406D	Jiffy-tite 2000 Plug 45 -6 Male FKM Seals	$26.16
8-22406E	Jiffy-tite 2000 Plug 90 -6 Male FKM Seals	$26.16
8-22506	Jiffy-tite 2000 Plug Straight Hose Barb FKM Seals	$20.10
8-22506D	Jiffy-tite 2000 Plug 45 Hose Barb FKM Seals	$25.92
8-22506E	Jiffy-tite 2000 Plug 90 Hose Barb FKM Seals	$25.92
8-22506P	Jiffy-tite 2000 Plug Straight Push Lock FKM Seals	$15.08

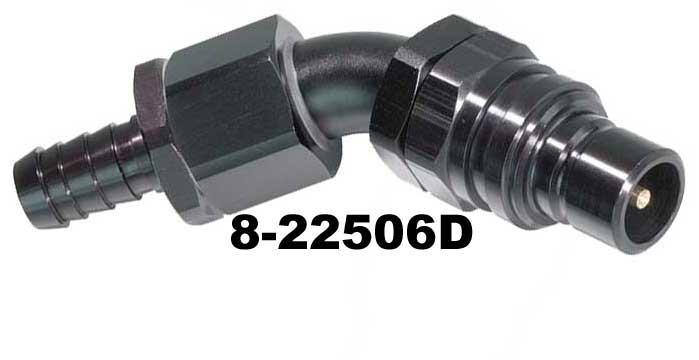

8-22506PD	Jiffy Tite 2000 Plug 45 Push Lock Fkm Seals	$19.45
8-22506PE	Jiffy-tite 2000 Plug 90 Push Lock FKM Seals	$19.45
8-22606J	Jiffy-tite 2000 Plug Straight -6 Hose End FKM Seals	$26.04
8-22606JD	Jiffy-tite 2000 Plug 45 -6 Hose End FKM Seals	$31.86
8-22606JE	Jiffy-tite 2000 Plug 90 -6 Hose End FKM Seals	$31.86
8-22702	Jiffy-tite 2000 Plug Straight 1/8 Npt Female End FKM Seals	$22.29
8-22702D	Jiffy-tite 2000 Plug 45 1/8 Npt Female End FKM Seals	$28.10
8-22702E	Jiffy-tite 2000 Plug 90 1/8 Npt Female End FKM Seals	$28.10

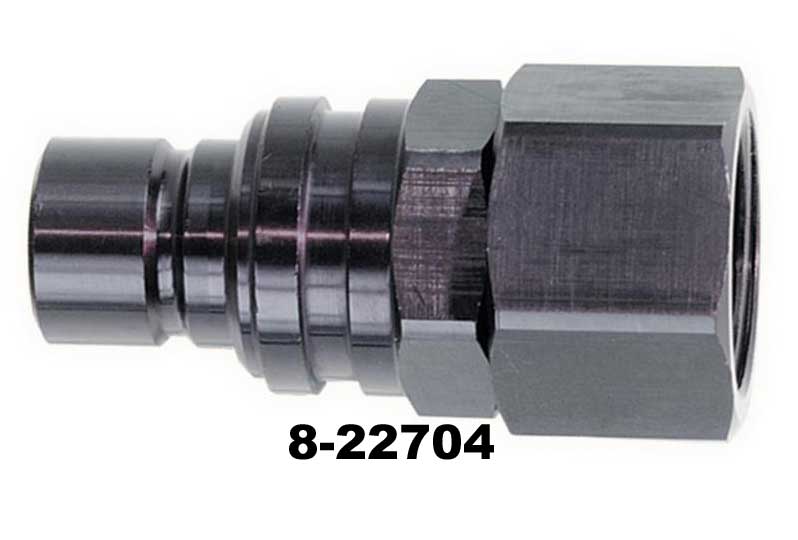

8-22704	Jiffy-tite 2000 Plug Straight 1/4 Npt Female End FKM Seals	$23.39
8-22704D	Jiffy-tite 2000 Plug 45 1/4 Npt Female End FKM Seals	$29.20
8-22704E	Jiffy-tite 2000 Plug 90 1/4 Npt Female End FKM Seals	$29.20
8-22802	Jiffy Tite 2000 Plug Straight 1/8 Npt Male End Fkm Seals	$21.22
8-22802D	Jiffy-tite 2000 Plug 45 1/8 Npt Male End FKM Seals	$27.04
8-22802E	Jiffy Tite 2000 Plug 90 1/8 Npt Male End Fkm Seals	$27.04
8-22804	Jiffy-tite 2000 Plug Straight 1/4 Npt Male End FKM Seals	$22.33
8-22804D	Jiffy-tite 2000 Plug 45 1/4 Npt Male End FKM Seals	$28.14
8-22804E	Jiffy-tite 2000 Plug 90 1/4 Npt Male End FKM Seals	$28.14



All parts sold by MPS are for off road closed course use. They are not intended for use on public streets or highways.

As hard as we try, the prices on website are not guaranteed. Please check with MPS for the most accurate pricing.
