MPS High Pressure Components


The MPS Pressure Regulator (P/N 1-0352) has 4 ports. A 1/4” NPT inlet (High Pressure) port, an 1/8” NPT gauge (High Pressure) port, a 1/4” NPT outlet and an 1/8” NPT outlet (Regulated Pressure 0-275 psi) port . The ports are all labeled, HP for high pressure and LP for low or regulated pressure. The inlet port is supplied with a 1/4 NPT hex nipple installed that reduces it to 1/8 NPT male that can be installed into the bottle valve actuator of your CO2 bottle or gauge adapter of your nitrous bottle. This can be replaced with a -4 x 1/4 NPT AN fitting and use a -4 line to connect to your high pressure source. The outlet has a 1/4 NPT x ¼ poly fitting. This will go out to your low pressure device. We recommend using a small tank in conjunction with this regulator to insure an adequate volume of gas for your device.

The MPS CO2 System 7 (P/N 1-0333) converts your low pressure air shifter system into a regulated high pressure system capable of hundreds of shifts from a smaller bottle. The CO2 System 7 kit comes with a 7 ounce bottle with pin valve and a Regulator assembly for paintball bottles (P/N 1-0329). The bottles can be filled at any paintball refill center.

The pin valves on CO2 bottles operate like schrader valves on a tire. Pushing down the pin opens the valve. The pin valve actuator works by pushing down on the pin when you screw the on-off knob clockwise. Since CO2 is a liquid in the bottle and the regulator can’t regulate liquid, you must mount the bottle so that only gas and no liquid can get into the regulator. We recommend having a small tank between the regulator and the air valve.



1-0352 MPS pressure Regulator1-0329 MPS Paintball Regulator Assembly1-0333 MPS System 7
1-0912 Regulator ClampMPS Pin Valve MPS Pin Valve and Adapter 1 Lb Bottle, 3/4" Thread MPS Pin Valve Actuator Only
MPS Pin Valve & Actuator   MPS Paintball Filler Assembly

Part Number

Description Racer Price

1-0352

 MPS Adjustable Pressure Regulator 1/4'' NPT Output

$103.95

1-0912

 MPS Cushioned Clamp 1 3/8'' ID

$2.99

1-0329

 MPS Regulator Assembly Paintball Bottles

$139.65

1-0333

 MPS CO2 System 7 oz with Regulator

$250.95

1-0325

 MPS DOT Air Bottle 7 oz (no top, 2'' Diameter)

$114.35

1-0367

 MPS Pin Valve 5/8' Thread

$17.32

1-0668

 MPS Pin Valve O-Ring (Top Clear Urethane)

$1.05

1-0328

 MPS Pin Valve and Actuator CO2 With Hex Nipple

$51.98

1-0340

 MPS Pin Valve And Adapter 3/4'' to 5/8'' thread

$40.42

1-0624

 MPS Bottle Top Adapter 3/4-16 OD x 5/8-18 ID

$28.88

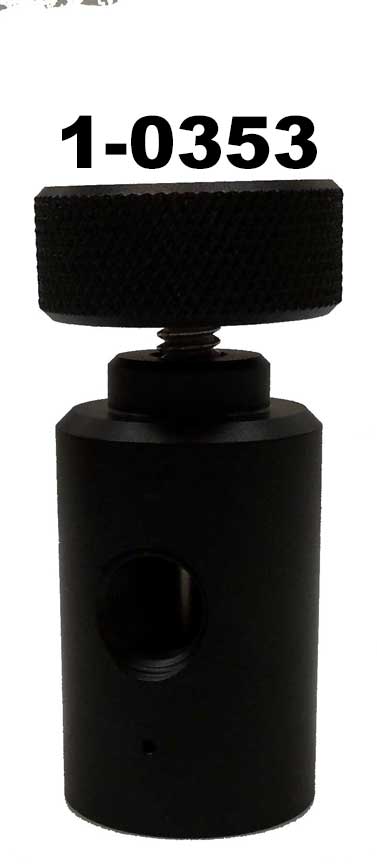

1-0353

 MPS Pin Valve Actuator with 1/8'' Hex Nipple

$40.42

1-0353-1/4

 MPS Pin Valve Actuator with 1/4'' Hex Nipple

$42.45

1-0377

 MPS Paintball Filler Assembly

$75.08
