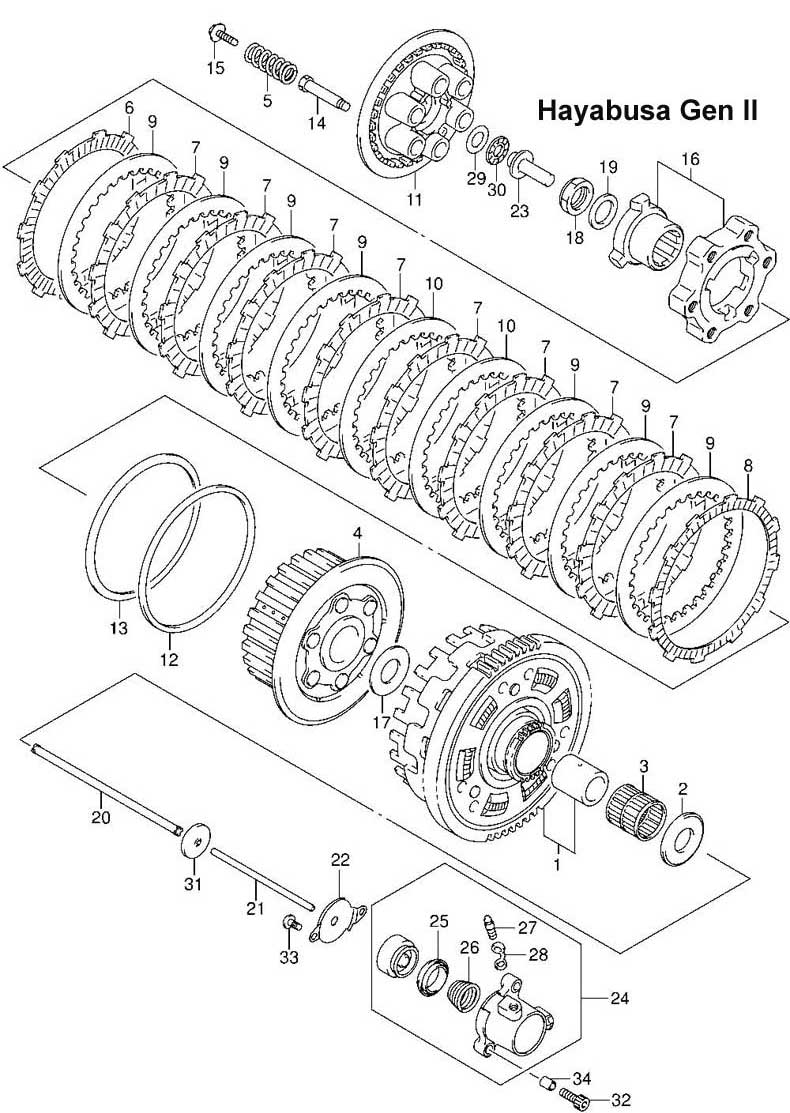

Hayabusa Clutch Fiche Gen II
Gen 2 Hayabusa Clutch Fiche

Suzuki Hayabusa Gen II

Ref#

Part

#Req

1

GEAR ASSY, PRIMARY DRIVEN
21200-24810

1

2

WASHER (25X54X2.4)
09160-25073

1

3

BEARING (35X40X39.8)
09263-35013

1

4

HUB, CLUTCH SLEEVE
21410-24F00

1

5

SPRING, CLUTCH
21413-24F30

6

6

PLATE, CLUTCH DRIVE NO.2
21441-24F10

1

7

PLATE, CLUTCH DRIVE NO.1
21441-24F30

8

8

PLATE, CLUTCH DRIVE NO.3
21442-24F00

1

9

PLATE, CLUTCH DRIVEN NO.1
21451-24F00

7

10

PLATE, CLUTCH DRIVEN NO.2
21451-24F10

2

11

DISC, CLUTCH PRESSURE
21462-24F00

1

12

SEAT, WAVE WASHER
21471-24F00

1

13

WASHER, CLUTCH PLATE WAVE
21472-06G00

1

14

BOLT, CLUTCH SPRING SUPPORT
21481-24F31

6

15

BOLT, CLUTCH SPRING
21482-24F30

6

16

CAM SET, CLUTCH
21610-02F12

1

17

WASHER (25X50X2.5)
09160-25056

1

18

NUT
09159-24010

1

19

WASHER
09164-24006

1

20

ROD, CLUTCH (L:195.5)
23110-24F00

1

21

ROD, CLUTCH PUSH (L:132.5)
23111-26D00

1

22

COVER, CLUTCH RELEASE
23117-46E00

1

23

PIECE, CLUTCH PUSH
23121-31E00

1

24

CYLINDER, CLUTCH RELEASE
23160-15H00

1

25

.CUP
23163-10F00

1

26

.SPRING
23164-10F00

1

27

.BLEEDER
59121-01A00

1

28

.CAP, BLEEDER
59122-01A00

1

29

WASHER (15.5X28X1)
09160-15045

1

30

BEARING (15X28X2)
09263-15003

1

31

OIL SEAL (6X34X5.5)
09285-06015

1

32

BOLT
07130-0625A

2

33

SCREW
02112-0610A

2

34

PIN
04211-09129

2
