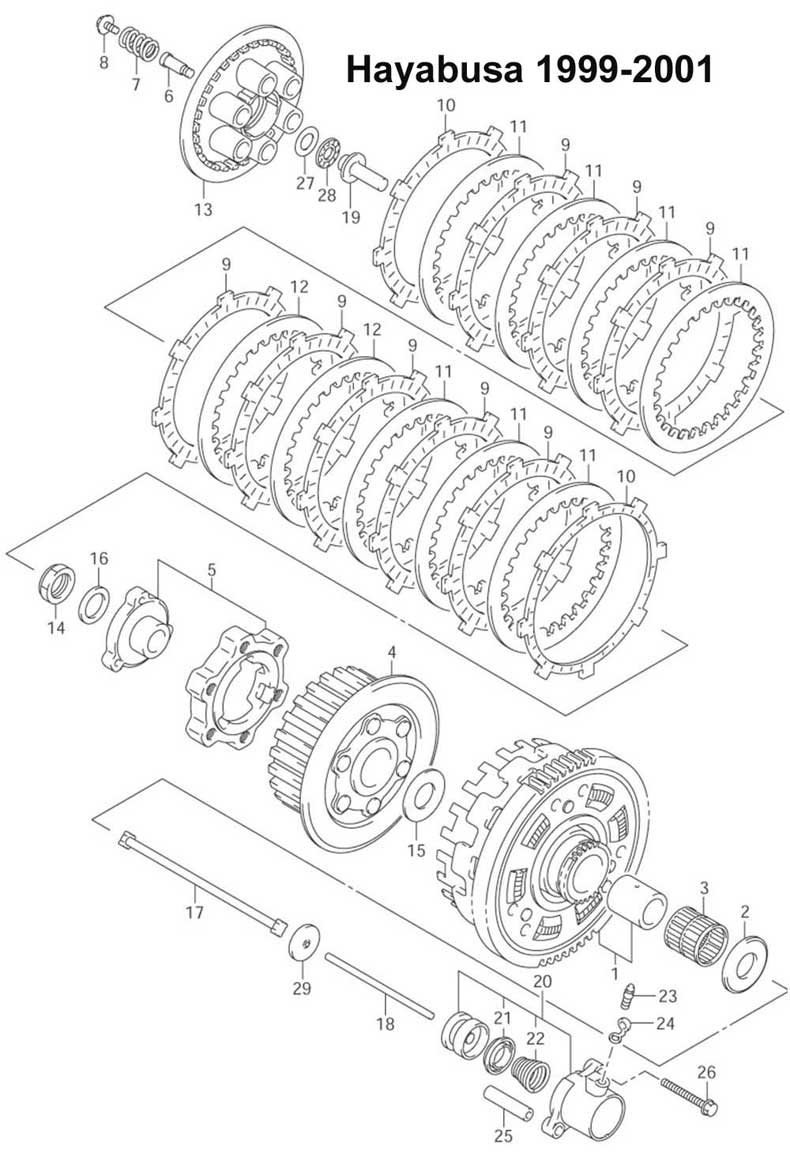

Hayabusa Clutch Fiche 99-01
Hayabusa Clutch Fiche 99-01

Suzuki Hayabusa 99-01

Ref#

Part

#Req

1

GEAR ASSY, PRIMARY DRIVEN
21200-24830

1

2-1

WASHER (25.1X54X2.5) Model X/Y
09160-25071

1

2-2

WASHER (25.1X54X2.5) Model K1
09160-25037

1

3

BEARING (35X40X39.8)
09263-35013

1

4

HUB, CLUTCH SLEEVE
21410-24F00

1

5

CAM SET, CLUTCH
21610-02F12

1

6-1

BOLT, SPRING SUPPORT Model X
21481-02F12 (was 21481-02F10)

6

6-2

BOLT, SPRING SUPPORT Model Y/K1
21481-02F12 (was 21481-02F11)

6

7-1

SPRING, CLUTCH Model X
21413-24F10 (was 21413-24F00)

6

7-2

SPRING, CLUTCH Model Y/K1
21413-24F10

6

8-1

BOLT, CLUTCH SPRING Model X
21482-02F12 (was 21482-02F10)

6

8-2

BOLT, CLUTCH SPRING Model Y/K1
21482-02F12 (was 21482-02F11)

6

9

PLATE, CLUTCH DRIVE, NO.1
21441-24F00

8

10

PLATE, CLUTCH DRIVE, NO.2
21441-24F10

1

11

PLATE, CLUTCH DRIVEN NO.1
21451-24F00

7

12

PLATE, CLUTCH DRIVEN NO.2
21451-24F10

2

13

PLATE, CLUTCH DRIVE NO.3
21462-24F00

1

14

NUT, CLUTCH SLEEVE HUB
09159-24010

1

15

WASHER (25x50x2.5)
09160-25072

1

16

WASHER, CLUTCH SLEEVE 24.2X35X2
09164-24006

1

17

ROD, CLUTCH PUSH RH
23110-24F00

1

18

ROD, CLUTCH PUSH LH
23111-26D00

1

19

PIECE, CLUTCH PUSH
23121-31E00 (was 23121-31E10)

1

20

CYLINDER, CLUTCH RELEASE
23160-08A02

1

21

.CUP
23163-05A00

1

22

.SPRING
23164-05A00

1

23

.BLEEDER
59121-01A00

1

24

.CAP, BLEEDER
59122-01A00

1

25

PIN, CL RLSE CYL
04211-09129

1

26

BOLT, CL RLSE CYL
07130-0625B (was 07130-06253)

1

27

WASHER, CLUTCH PUSH 15.5X28X1
09160-15045

1

28

BEARING, CLUTCH PUSH (15X28X2)
09263-15003

2

29

SEAL (6X34X5.5)
09285-06015

2
